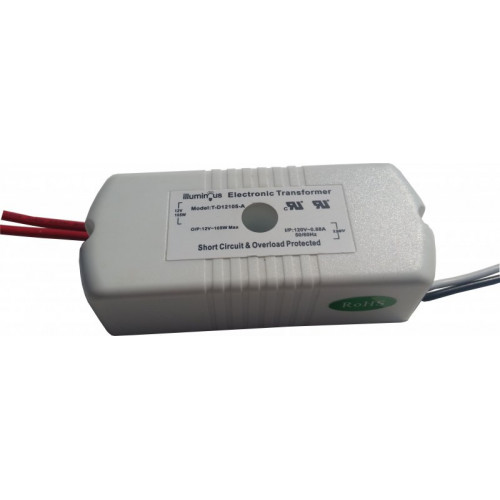

• 20-105W 120V to 12V Dimmable Transformer UL approved
File Size
Datasheet 275.42KB Download
Installation Instructions 282.69KB Download
  • Fully dimmable With standard TRIAC dimmers
  • Suitable for Halogen Lights ONLY, will not work with LED.
  • Single Input 120VAC, +-6%, 50/60 Hz, 0.5A, PF>0.98
  • Output 11.5V +-6%, min load 20W, max load 105W
  • Approvals: UL, cUL class 2, CE, FCC, RoHS
  • Flying leads for rapid connection
  • IP20 For dry location
  • Protection: Short-Circuit, Overload, Over Heat
  • Soft start to prolong lamp life. NOTE: Output = 0V until a valid Halogen or Incadescant load >20W.
  • Auto-restart function when fault condition is removed
  • -10C to +40C, full load, max case 65C. 20 to 95% RH NC
  • Size: 4.29” L x 1.81” W x 1.14” H (109mm L x 46mm W x 29mm H)
  • Shell material: Plastic
  • 2 year warranty
Voltage / Power
Input Voltage 120V
Output Voltage 12V AC
Constant Current / Voltage Constant Voltage
Wattage 105W
Output Current 8.75W
Protection (Short Circuit / Thermal / Overload) Yes
Dimmable Yes
IP Rated No
submersible No
Cable Included Yes
Wiring (Series / Parallel) Parallel
Location Indoor
Material Plastic
Thermal 104C
Length 4.29"
Width 1.81"
Height 1.14"
2 yr.

20-105W 120V to 12V Dimmable Transformer UL approved

  • Brand: illuminous
  • Product Code: EV-D12105-A
  • Availability: In Stock
  • $12.99
