File Size
Datasheet 715.86KB Download
Installation Instructions 201.06KB Download
  • Single Input 120-240Vac ± 6%, 60Hz, 0.24A
  • With Power Factor Correction function: PF > 0.9
  • Output 350mA +-6%, 1-8W, 3-36V
  • Compact, lightweight in plastic case.
  • Designed for indoor application.
  • Lamps wired in series, and total value of LED Vf should be under 48V
  • Protection: Short-Circuit / Over Load / Over Heat and Auto-recovery Mode
  • Fly leads 20AWG 15cm for rapid connection
  • Approvals: UL, cUL 1310 class 2, CE, FCC, RoHS
  • Auto-restart function when fault condition is removed
  • -20C to +70C, full load, max case 70C. 20 to 95% RH NC
  • Size: 2.56" L x 1.38" W x 0.91" H (65mm L x 35mm W x 23mm H)
  • Shell material: Plastic
  • 2 year warranty
Voltage / Power
Input Voltage 120-240V
Output Voltage 3-36V
Constant Current / Voltage Constant Current
Wattage 8W
Output Current 350mA
Protection (Short Circuit / Thermal / Overload) Yes
Dimmable No
IP Rated No
submersible No
Cable Included Yes
Wiring (Series / Parallel) Series
Location Indoor
Material Plastic
Thermal 104C
Length 2.56"
Width 1.38"
Height 0.91"
2 yr.

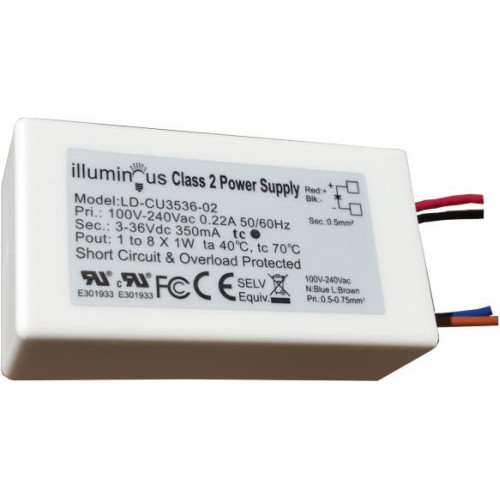

350mA Constant Current 1-8W DC LED Driver UL approved

  • Brand: illuminous
  • Product Code: EV-CU3536-02
  • Availability: In Stock
  • $17.99
