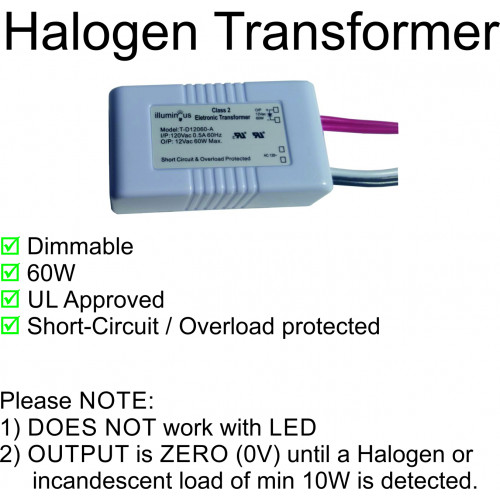

• 10-60W 120V to 12V Dimmable Transformer UL approved
File Size
Datasheet 299.7KB Download
Installation Instructions 300.17KB Download
  • Fully dimmable With standard TRIAC dimmers
  • Suitable for Halogen Lights ONLY, will not work with LED.
  • Single Input 120VAC, +-6%, 50/60 Hz, 0.5A, PF>0.98
  • Output 11.5V +-6%, min load 10W, max load 60W
  • Approvals: UL, cUL class 2, CE, FCC, RoHS
  • Flying leads for rapid connection
  • IP20 For dry location
  • Protection: Short-Circuit, Overload, Over Heat
  • Soft start to prolong lamp life.  NOTE: Output = 0V until a valid Halogen or Incadescant load > 10W.
  • Auto-restart function when fault condition is removed
  • -10C to +40C, full load, max case 65C. 20 to 95% RH NC
  • Size: 2.56” L x 1.38” W x 0.91” H (65mm L x 35mm W x 23mm H)
  • Shell material: Plastic
  • 2 year warranty
Voltage / Power
Input Voltage 120V
Output Voltage 12V AC
Constant Current / Voltage Constant Voltage
Wattage 60W
Output Current 5A
Protection (Short Circuit / Thermal / Overload) Yes
General
Dimmable Yes
IP Rated No
submersible No
Cable Included Yes
Wiring (Series / Parallel) Parallel
Location Indoor
Material Plastic
Thermal 104C
Dimensions
Length 2.56"
Width 1.38"
Height 0.91"
Warranty
2 yr.

10-60W 120V to 12V Dimmable Transformer UL approved

  • Brand: illuminous
  • Product Code: EV-D12060-A
  • Availability: In Stock
  • $12.99
