File Size
Datasheet 133.88KB Download
  • Premium Super-Bright 350 Lumens /ft, IP68 24V Waterproof Led flex, High density 60LED/M, 2835 LED,
  • Suitable for building features, stair/bar edging, floor marking, signage, marine and outdoor lighting.  Now with 3M tape for easy installation
  • Warm-White 3000K LED Flex
  • Premium LED CHIP at 20 lumens per CHIP, plus Silicon not Epoxy Fill -  Greater Luminance and durable product.
  • Price shown is per 16.4ft / 5M reel
  • No UV or IR radiation, low heat, Premium 2 0z PCB for low voltage drop, lower temperature, longer life
  • Requires 24V DC constant voltage LED driver
  • Dimmable (with dimmable driver, i.e Eversale 48W EV-24V-2000-60D)
  • For runs over 16ft / 5M individual lengths should be connected in parallel (Lengths can be joined, but LED start to fade after ~2 Reels)
  • Low power consumption - 2.4W/m
  • Size: 4.3mm H x 12.6mm W x 5000mm L (Strip inside is 10mm wide)
  • Cut-point every 6 LED, every 100mm
  • IP68 accessories and connector kits available
  • 18 LED/ft (60 LED/m), Bend Radius 28mm / 1.1"
  • Life: 35,000 hours
  • 0.4Kg / 0.88lb
  • 1 year warranty
Voltage / Power
Input Voltage 24V DC
Constant Current / Voltage Constant Voltage
Wattage 40W
General
Lumens 300/ft
Bulb Color Warm White
Color Temperature K 3000K
LED Qty 300
Dimmable Yes
IP Rated IP68 No Dust / Water beyond 3.3ft
submersible 3.3 ft
Wiring (Series / Parallel) Parallel
Location Outdoor
Profile Flat
Fixing 3M-Tape
Max Length 8M
Power / ft 2.44W
Dimensions
Length 16.4'
Width 0.5"
Height 0.17"
Warranty
1 yr.
Life (hrs) 50000

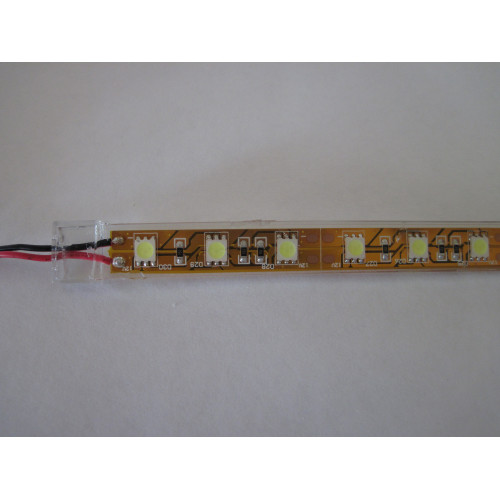

LED 24V Flex Strip Super Bright Warm White Waterproof IP68

  • Brand: illuminous
  • Product Code: EV-ST-WP-WW-24V
  • Availability: In Stock
  • $69.99
