File Size
Datasheet 316.28KB Download
  • LED PAR36 8-9W, 10-30V AC/DC, Well Lamp, Eq to 50W Halogen with 85% Energy saving
  • Suitable for Landscape Well Light replacement. Custom LED Driver circuit to withstand voltage surges in Landscape environments..
  • Luminous flux: 800-900LM, 120 degree spread Flood. Replace 50PAR36, 19880, 16541, 16542, 11468, 55017, 296038, 55017, 228593, 296038, 14555
  • Color temperature: 2800-3000K, Warm-white, CRI > 73Ra
  • Protect level: IP65 (Splash / Waterjet proof)
  • No UV or IR radiation, low heat
  • Base: Crew Terminal
  • Size: Dia 113 * 60mm
  • Light source: 60 x SMT 2835 LED
  • Life: 35,000 hours, min 70% of initial output.
  • 2 year warranty

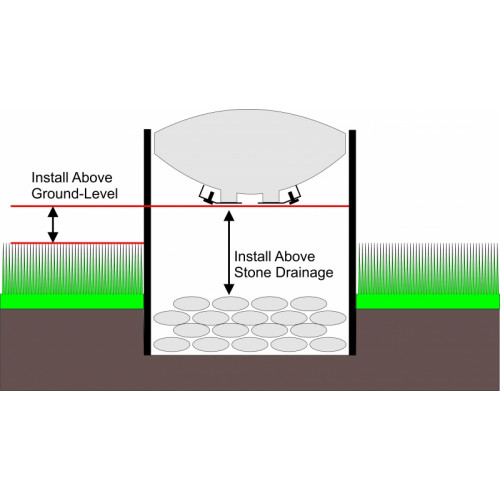

  • Ensure that the lamp is installed above ground level, within a fixture, with drainage (stone chips) below the lamp to avoid pooling from flash downpours. Product not warranted for Water damage.
Bulb Type
PAR36
Voltage / Power
Input Voltage 10-24V AC/DC
Wattage 9W
General
Lumens 900
Bulb Color Warm White
Bulb Included Yes
Color Temperature K 3000K
LED Qty 60
Dimmable Yes
IP Rated IP65 No Dust / Water Jets
submersible No
Cable Included No
Wiring (Series / Parallel) Parallel
Location Outdoor
Material Glass
Angle 120
Dimensions
Height 2.36"
Diameter 4.45"
Warranty
1 yr.
Life (hrs) 30000

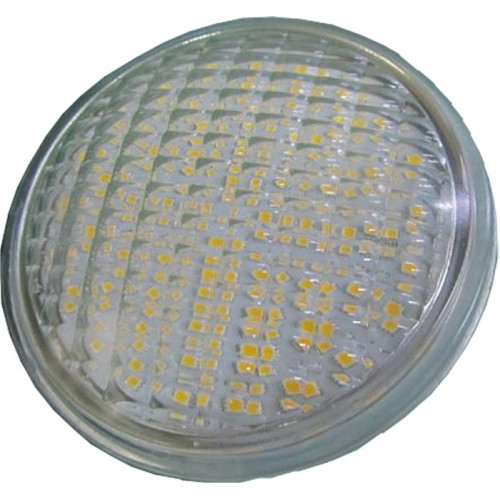

LED 9W (Eq. to 50W) PAR36 12V AV/DC Flood Lamp LED

  • Brand: illuminous
  • Product Code: EV-LED-PAR36-9W
  • Availability: In Stock
  • $9.99
